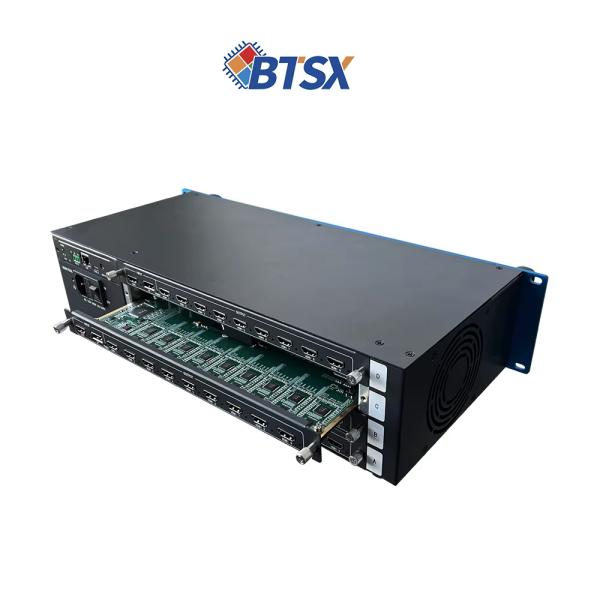

4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing

Name: 4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing
Brand: Bitvisus
Price: 1929 USD

4 Signal Inputs 36 Outputs Video Wall Controller with 4x9 LCD LED Splicing Processor for Large Screen Splicing Manufactures

Brand Name : Bitvisus

Model Number : BIT-VWC-U2-436

Certification : CE、FCC、GB

Place of Origin : Guangdong China

MOQ : 1

Price : 1929

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 5-8 work days

Packaging Details : 8KG, 50cm*20cm*10cm

Product name : BIT-VWC-U2-436

Product type : 4x9 8K60 LCD LED Video Wall Controller

Resolution : 8K@60Hz

Feature : 4 in 36 out large screen splicing

Function : Stitching

Input : 4XHDMI 2.0,4xDP 2.0(HDMIDP Either/or input)

Output : 36x HDMMI 1.3

Input Interface : 600MHz

Output Interface : 154MHz

Warranty : 3 Years

Contact Now

BIT-VWC-U2-436 is a 8K60 splicing processor independently developed and produced by Bitvisus, through an independent graphics card input 4-way 4K60, the interface can be selected HDMI or DP, the output of 32-way 1080P60 HDMI interface, a single device to support the insertion of 4 boards and cards, the plug-in card structure design, according to the needs of a flexible configuration to provide a remote control, serial port, network port control Remote control, serial port, network port control interface.Ultra-high picture quality, great stability, extremely simple operation, widely used in meeting rooms and conference centers,command centers, monitoring rooms, commercial displays and advertising, public information dissemination, museums and exhibition halls and other places.

* Support 4-way HDMI/DP input, 36-way HDMI output;
* A single device, 4 in 36 out, can be any combination of multiple splicing modes: horizontal screen / vertical screen / field
shape, and support large-scale parallel use;
* Input maximum support 17280 × 4320P30, 11520 × 6480P30, backward compatible. Output maximum single channel support 1920 ×1080P60;
* Support for fixed EDID, can also be customized resolution of independent graphics cards;
* Point-to-point splicing, no stretching, no distortion, no need for compression processing of the input source, clear picture.
* Output support for the first line of rotation 180 °;
* Support infrared remote control, serial RS232, network interface WEB interface control;
* Support software standby, better control and management, improve life and safety;
* With the use of open window software, to achieve large screen splicing at the same time, to meet the multi-screen display on the wall at the same time;
* Using 28nm process high-end programmable FPGA chip, full hardware real-time processing architecture, ultra-fast processing speed without delay.
* Low power consumption, energy saving and environmental protection design, without any external cooling measures, extremely high reliability.

Product Specifications

Product Name	BIT-VWC-U2-436
Input Interface	4×HDMI 2.0,4×DP 2.0(HDMI/DP Either/or input)
Input Maximum Resolution	4×9:17280×4230P30 5×7:13440×5400P30 6×6:115200×6480P30
Color format	RGB444,YUV444,YUV422,YUV420
Output Interface	36×HDMI 1.3
Output Resolution	1920×1080P60
Control Method	Remote Control, RS232 Serial Port, Web
Audio	HDMI Audio Follow-Out, 3.5MM Audio Separation
Power supply	220V
Power Consumption	80W
Product DimensionsSize	L×W×H: 483mm×200mm×100mm
Package Weight	7.5KG
Accessory List	1×220V power cord, 4×HDMI cable or DP cable, 1×Phoenix terminal, 1×Blue network cable, 1×IR infrared head, 1×Remote control
After-sales service	3 years
